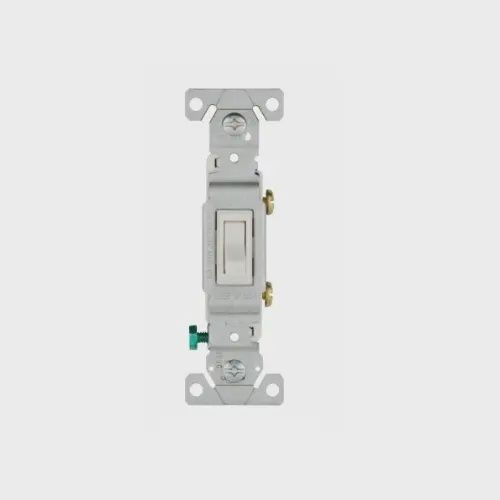

1301-7W Toggle Single Switch
$1.73
In stock: 37 available
Product Details
Brand: Eaton
Eaton Wiring Devices 1301-7W Toggle Switch, 120 V, Wall Mounting, Polycarbonate, White; 1 PACK
Longer, wider strap provides 40 percent more contact area to wall board. Virtually eliminates floating installations. Unbreakable top and bottom housing. Industrial design cam action mechanism insures quiet switch action. Built-in wire stripper for number 14 and number 12 wire. Built-in wire looper for pre-looping. Double riveted switch. Three way switches feature additional push-in common termination for feed-through tapping. Push-in terminals accept number 14 solid wire only. Side wire terminals accept up to number 10 solid or stranded wire. Combination slot/Phillips and Robertson-head terminal screws. 15 amp, 120 volt. Meets all UL 20 requirements. UL Listed.Push-in terminals accept #14 AWG solid wire only, side wire terminals accept up to #10 AWG solid wirePush-in terminals accept #14 AWG solid wire only, side wire terminals accept up to #10 AWG solid wireLong, broad mounting strap virtually eliminates floating installationsPatented built-in wire stripper for #12 and #14 AWG wire to speed installationTri-combo screws accept Slotted, Phillips and Robertson head tools for installation flexibilityWire looper speeds termination of both #14 and #12 AWG wire
Actuator Type | Toggle |
Color | White |
Current Rating | 15 A |
Dielectric Strength | 1500 V |
Dimensions | 4.2 in L x 1.3 in W x 1.103 in D |
Housing Material | Polycarbonate |
Mounting Type | Wall |
Number of Poles | 1 |
Temperature Rating | -20 to 60 deg C |
Voltage Rating | 120 V |
Wattage Rating | 0.5 hp |
