6207E Blower Motor

815585020516
$414.07
In stock
1
Product Details
Brand: Genteq

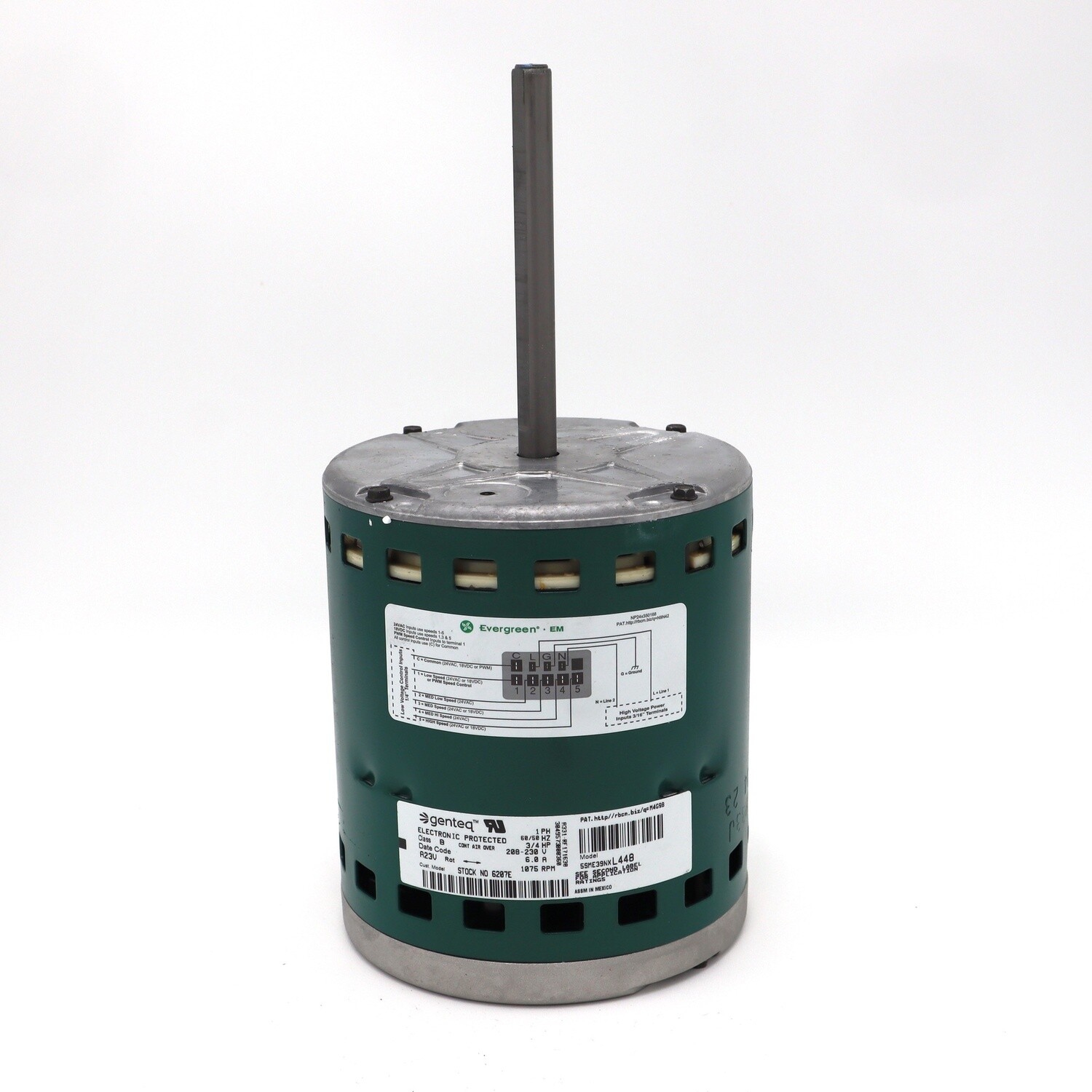

X13 3/4 HP Evergreen Motor with standard features that include:

  • Multi-speed, constant torque, brushless DC motor
  • available in 115V or 208-230VAC single-phase input, 50/60Hz
  • Designed to replace direct-drive blower motors in residential and light commercial indoor furnaces, air handlers, and package systems that were designed with a standard ECM motor, such as an X13 or equivalent competitor model.
  • Available in 1/3, 1/2, 3/4 and 1HP ratings
  • Automatically determines motor direction using Genteq's Rotation Sensing Technology.
  • 5 discrete speeds using 24VAC (3 using 18VDC) Low voltage signal harness provided with the motor.
  • Operating speed range of 600-1200 rpm
  • NEMA 48-frame (5.6 inch diameter) Belly Band Mount with 5-inch long ½ inch diameter shaft.
  • UL and CSA recognized component
