No. of Poles 10 Motor Type ECM Enclosure OAO HP (Max.) 1/2 Voltage 120/240 Mounting Belly Band Speeds 5 Hz 60/50 Rotation REV+FWD Multi-Rated HP 1/4-1/2 RPM Range 1075 Variable NEMA Frame Size 48 Phase Single Standards CUL FLA 6.4/3.8 Bearing Ball Lead Length (in.) 43 Thermal Protection REDUNDANT Electronic Control CIRCUITS Ambient Deg C 55 NOTE Bluetooth Control - AZURE ECM App Ins. Class B Shaft Dia. (in.) 1/2 Capacitor Included No Shaft Length (in.) 4.94 Replaces Variable Speed ECM and Constant Torque Service Factor 1.0 Duty Continuous

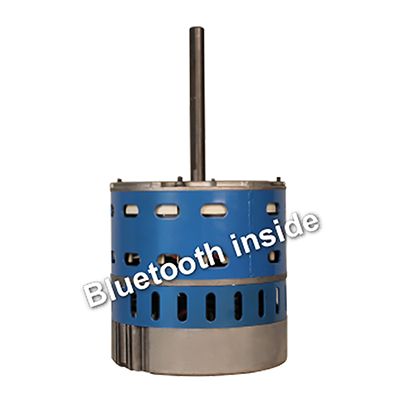

Azure ECM Direct Drive Variable Speed & Constant Torque

• Bluetooth Control -Free app (AZURE ECM) with Intuitive Drop down menus
• Azure connects directly to OEM harnesses; additional module or adapter is not required
• The app allows optimization of airflow even if ductwork is not optimal
• 4 speeds plus 625 RPM constant fan mode
• High efficiency 85%
• Replaces A LOT of motors and Saves time and money!
