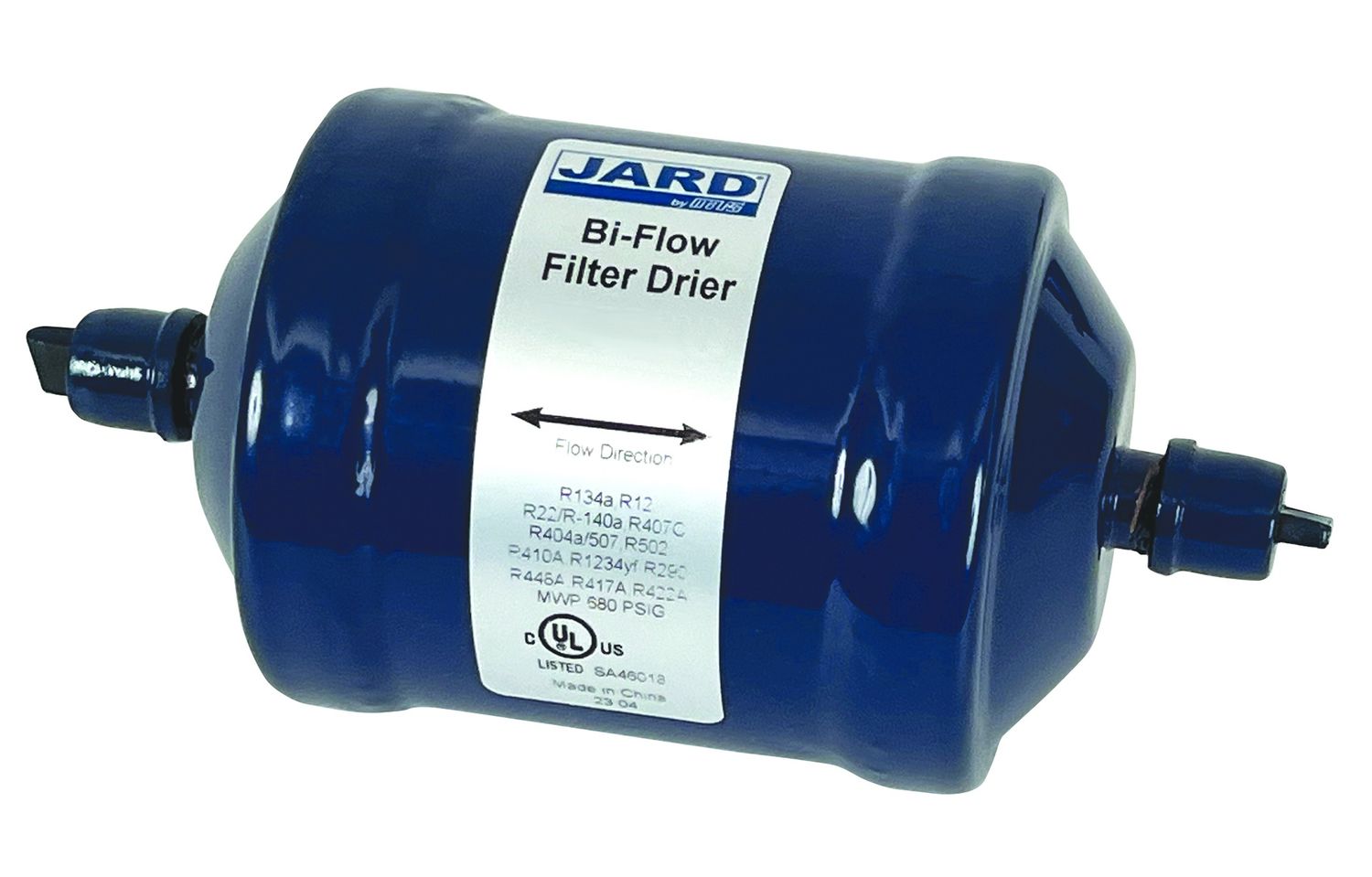

Drier Type Heat pump (Bi-flow)

Inlet (in.) 3/8

Core Size (in.) 08

Outlet (in.) 3/8

Inlet connection type SOLDER

Outlet connection type SOLDER

Max. Working Pressure (PSI) 680 psig

Material Molecular Sieve/Activated Alumina Blend

Connection Material Copper

Body Material Steel

R-22 Flow Capacity (Tons) 5.1 R-407C Flow Capacity (Tons) 5 R-410A Flow Capacity (Tons) 5.1

Approved Refrigerants R134a, R12, R22, R407C, R404a, R410A, R290, R448A Filtration 20 microns

• Solid Core design
• Reversible refrigerant flow design for heat pumps
• Contains activated alumina and molecular sieve
• Durable powder coated paint
• UL Approved
