Wireless direct to Job Link® System for electrical documentation
Low Pass Filter for VFD systems
Molex test leads for small circuitry
Test 3-phase with two leads
Safety rated CAT IV – 600V/CAT III – 1000V

Test HVACR electrical equipment using phase rotation, True RMS, and Inrush features. Plus connect directly with the Job Link® System app to document electrical measurements.

Electrical Testing for HVACR
True RMS readings through the clamp or leads. Inrush current mode to capture starting amps.

Test 3-Phase Power with Only Two Leads
With an alligator test lead (included) connected to L1, you can determine phase rotation with one hand.

VFDs voltage accuracy
Low Pass Filter (LPF) to remove noise and get true voltage.

Capacitance
Test questionable motor start and run capacitors. Determine when a capacitor needs to be replaced.

Molex Test Leads
Swap out your regular lead tips with the super thin Molex tips to get readings on hard to reach circuitry.

Magnetic Hanger
Hanging strap flips out to keep the meter locked in place.

And More

• Works with Job Link App
• °F and °C
• Hold/Max/min
• High voltage LED
• Beeper warning
• Non contact voltage
• LED and beeper
• Continuity LED and beeper
• Diode test
• Easy temp cal
• Microamps DC.
• Frequency (Hz) through the clamp
• Low ohm range for motor windings
• CATIII 1000V
• CATIV 600V
• 0.01AAC resolution
• Backlit display
• Auto-Power-Off

Includes:

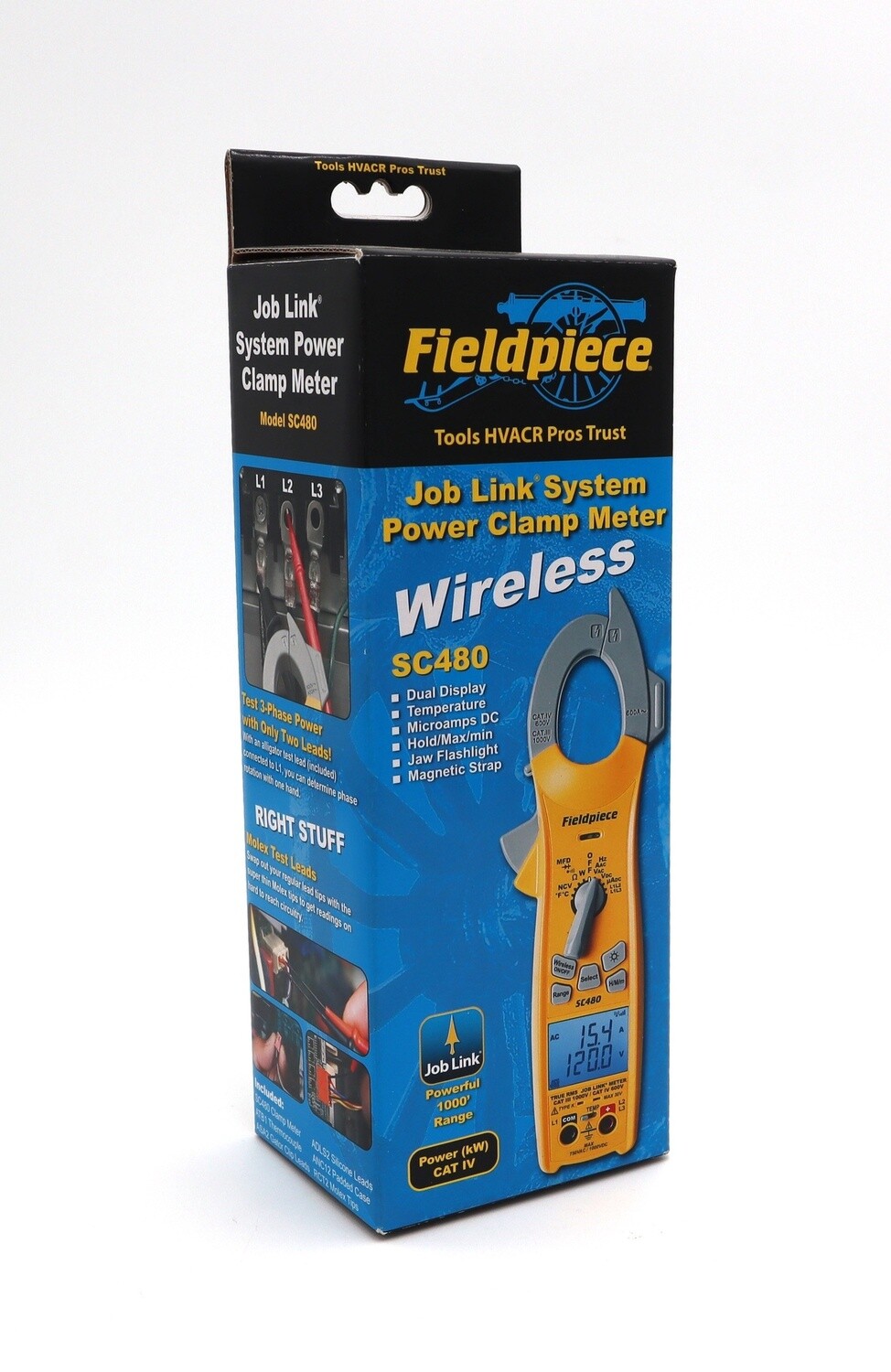

• SC480
• ATB1 Thermocouple
• ASA2 Gater Clip Leads
• ADLS2 Silicone Leads
• ANC12 Padded Case
• RCT2 Molex Tips
