Inlet (in.) 3/8

Outlet (in.) 3/8

Equalization External

Capacity (Tons) 1 1/2 to 3

Refrigerant R410A

Inlet connection type SOLDER

Nom. Capacity (Tons) 3.2

Application AC and Heat Pumps

Outlet connection type SOLDER

Balanced Port Yes

Bulb Charge MAH Anti-Hunt

Included Evaporator Fittings Aeroquip, Chatleff, 3/8 Flare

Included Equalization Fittings 7/8" and 3/4" X 1/4"

• Use as efficiency upgrade or for failed valve
• Kitted with most necessary fittings

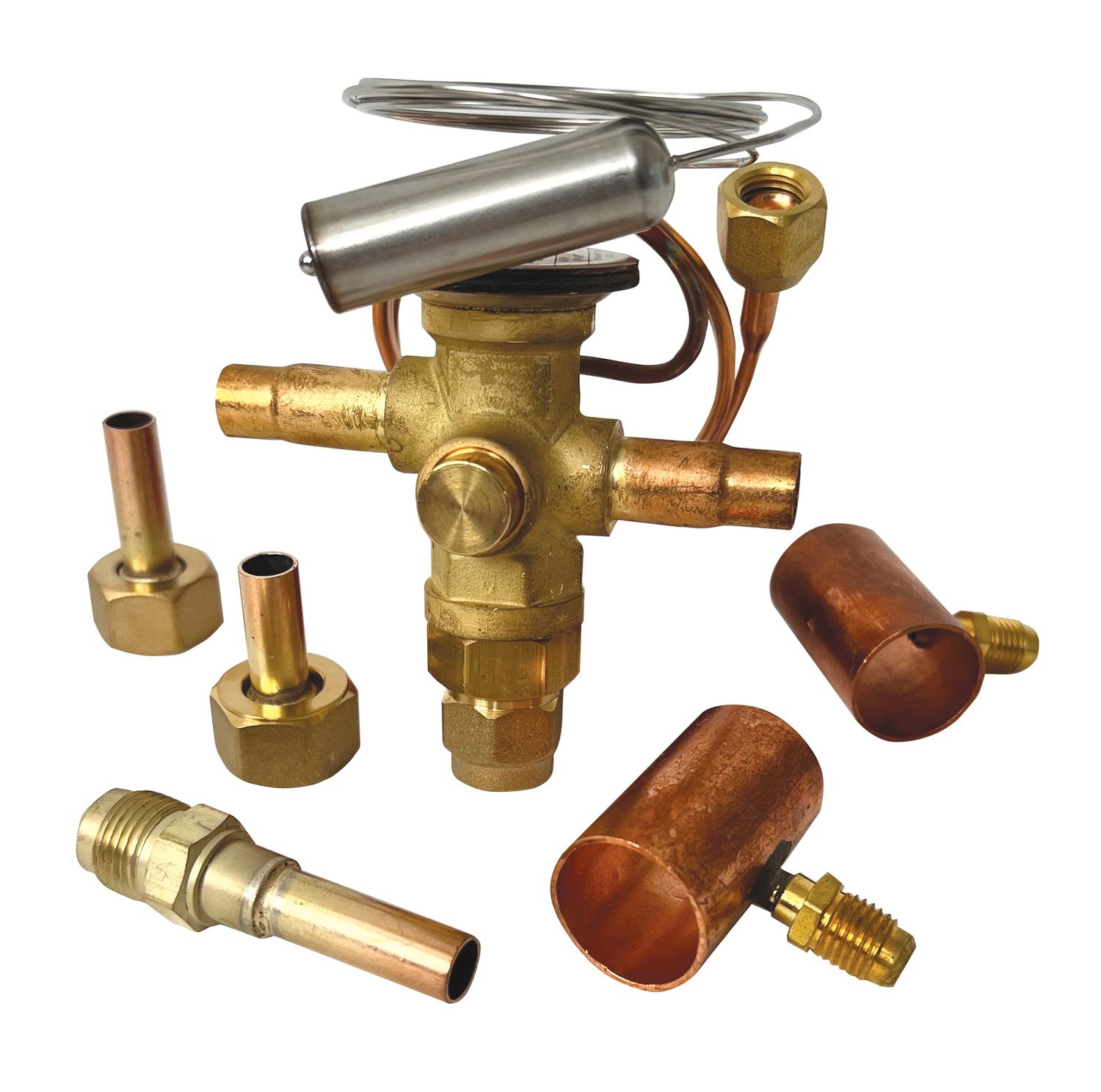

• Includes Chatleff, Aeroquip, & 3/8" flare fittings
• Includes 7/8" and 3/4" x 1/4" equalization tees
• Robust stainless steel power element and cap tube
• Easy to select using refrigerant and system cap
