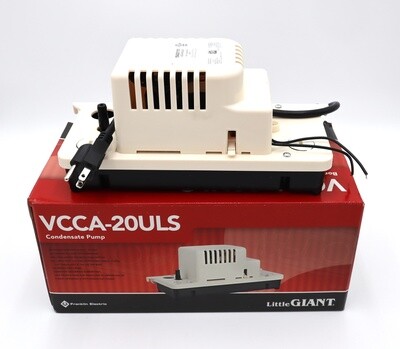

Little Giant Pumps 554201101_VCCA-20ULS Details

For reliable condensate removal, rely on this Little Giant VCCA-20 Series 3/8" low-profile condensate pump with safety switch! This pump features a low-profile design that is ideal for use in limited spaces. Use it to collect and remove condensate from refrigeration, air conditioning, and dehumidification equipment as well as high-efficiency gas- and oil-fired condensing boiler and furnace equipment. Built to last, it has a stainless steel motor shaft and durable ABS plastic housing. For added convenience, this pump features (3) 3/4" inlet openings for PVC pipe that provide multiple inlet locations for equipment (sold separately). 2 of the openings feature easily-removed plugs.

This pump features a low tank height that accommodates small spaces and is designed to automatically start and stop using a float switch mechanism that detects high water levels. The safety switch includes (2) 5" switch lead wires and the pump features a 1/30 hp motor with thermal protection that has a maximum water temperature of 120 degrees Fahrenheit. The item also features a 3/8" O.D. barbed discharge adapter with a 1/4-turn, twist-off locking check valve discharge adapter. With an 80 GPH at 1' head performance, a 20' shut off, and a collection tank with a 1/2 gallon capacity, this compact pump is ideal for automatic collection when gravity drainage is not possible. This item is designed with a pump switch test lever for manual test operation and rubber feet on the tank to secure it to hard surfaces. It has an 8.6 PSI threshold, requires a 115V connection, and features a 6' power cord.

Overall Dimensions:
Length: 5"
Width: 12"
Height: 5"
Capacity: 1/2 gallon
